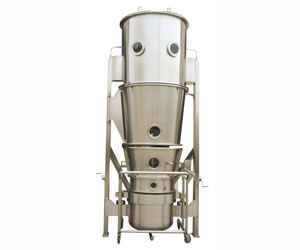

Fluid Bed Granulator

Home » Products » Granulation Equipment » Fluid Bed Granulator

General of Applications
The fluid-bed granulator is a new style of coating equipment that combines spraying technology and fluid-bed coating together. As a result, it can achieve uniform and continuous coating of the product surface.
The fluid bed granulator is widely used in coating powdered, granular, and pelleted material, slow-release control film coating, matrix slow-release control coating, moisture-proof coating, and more.

Features of Fluid Bed Granulator
1. The fluid bed granulator can be used for coloration, taste masking, moisture-proofing, anti-oxidation, heat insulation, and separation coating for powder, granular, and pellet raw materials.
2. Excellent dispersing of the products ensures no adhesion.
3. A short distance to move for spray drying and no coating material loss contribute to a low production cost.
4. The inverted centrum for deceleration and middle round pipe for acceleration make it possible to coat micro-granule, small and large granule, and micro-pellet materials.

Technical Parameters of the Fluid Bed Granulator

Item		3	5	15	30	60	120	200
Capacity	Kg/batch	1.5-4.5	4-6	10-20	25-40	40-80	80-150	150-250
Container volume	L	10	16	50	100	210	410	660
Powder of fan	kW	3	4	5.5	7.5	15	18.5	22
Consumption of compressed air	m³/min	0.25	0.35	0.6	0.85	1.1	1.6	2.2
Consumption of steam	Kg/h	Electric 8 kW	50	65	90	180	280	350

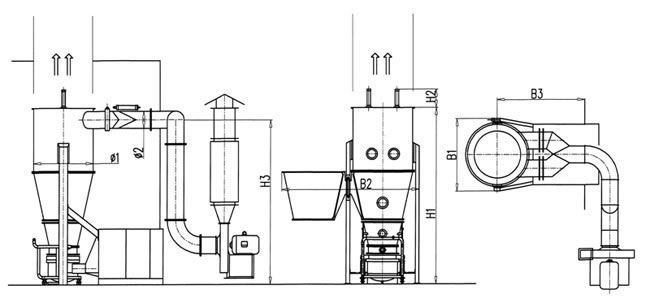

Size for reference	H1(mm)	1950	2360	2850	3120	3220	3450	3660
	H2(mm)	310	310	340	340	490	590	690
	H3(mm)	1750	2030	2530	2800	2900	3130	3350
	φ1	400	550	700	1000	1200	1600	1800
	φ2	150	180	250	250	280	280	315
	B1(mm)	660	1050	1160	1460	1660	2060	2260
	B2(mm)	1200	1650	1860	2460	2860	3660	4060
	B3(mm)	880	950	1400	1500	1600	1800	2000
